Create a 3DS Authenticated Payment with Third-Party Provider

This guide walks you through creating a 3D Secure (3DS) authenticated payment using an external third-party 3DS solution. When using this approach, authentication is performed by your third-party provider, and you must provide the resulting authentication data when creating the payment through GetNet’s Global API.

Requirements

Before following the steps, you need to:

Create your account by contacting the Integration Support Team to get your API credentials (client_id and client_secret).
Generate your Bearer token with your credentials using the Access Token endpoint.
Have an active integration with a third-party 3DS provider (e.g., Cardinal Commerce, Adyen, Stripe, etc.).
Ensure your third-party provider supports the card brands and countries you operate in.

Important for European transactions: For all transactions within the European Economic Area (EEA), 3DS authentication is mandatory in compliance with PSD2 and Strong Customer Authentication (SCA) requirements. All card payments processed in Europe must be authenticated using 3DS, unless a valid SCA exemption is applied and accepted by the card issuer. For more information about SCA exemptions, see the Taxes and Regulations reference documentation.

Payment facilitators: When Getnet enables your credential as a payment facilitator, you must also send the data.sub_merchant object when you create the payment. See Payment Facilitators.

Understanding Third-Party 3DS Authentication

When using an external third-party 3DS solution, the authentication flow is handled entirely by your third-party provider. The process works as follows:

The customer completes authentication through your third-party 3DS provider.
You receive authentication response data from the third-party provider.
You include this authentication data when creating the payment through GetNet’s payment API.

This approach allows you to use your existing 3DS infrastructure while still processing payments through GetNet.

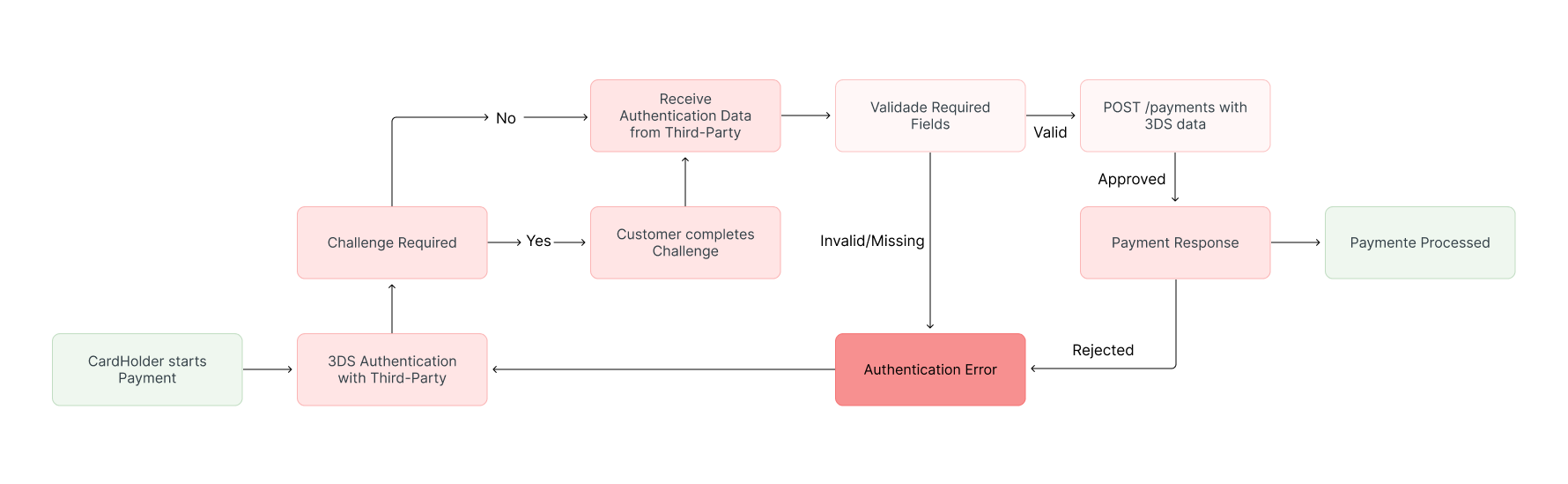

The following diagram illustrates the simplified authentication flow:

When to Use Third-Party 3DS

Consider using a third-party 3DS solution if:

You already have an existing 3DS integration with another provider
You need to maintain consistency across multiple payment processors
Your third-party provider offers additional fraud prevention features you want to leverage
You require specific 3DS features or configurations not available in GetNet’s native solution

If you’re starting fresh or don’t have an existing third-party integration, consider using GetNet’s native 3DS solution for a more streamlined integration experience.

Required Authentication Fields

When using external 3DS authentication, you must capture and provide the following fields from your third-party provider:

Field	Description	Required	Protocol Version
tdsver	The 3DS protocol version used in the authentication (e.g., “1.0.2” or “2.2.0”)	Yes	Both
eci	Electronic Commerce Indicator - a code indicating the authentication outcome and level	Yes	Both
xid	A unique transaction identifier generated in the 3DS flow, linking the authentication to the payment	Yes	3DS 1.0 only
ucaf	Universal Cardholder Authentication Field - a cryptographic value proving authentication was completed	Conditional	3DS 1.0 only
tdsdsxid	A transaction identifier generated by 3DS 2.x protocol (equivalent to `ds_trans_id`)	Yes	3DS 2.x only
cavv	Cardholder Authentication Verification Value - cryptographic proof of authentication	Conditional	3DS 2.x only

The exact fields required may vary depending on the 3DS protocol version (1.0 or 2.x) and your third-party provider. Consult your provider’s documentation for the specific fields they return and their exact field names.

Implementation Steps

Step 1: Complete Authentication with Third-Party Provider

Follow your third-party 3DS provider’s integration guide to complete the authentication flow. This typically involves:

Initiating the authentication request with your provider
Redirecting the customer to complete authentication (if challenge is required)
Receiving the authentication response with the required fields

The exact steps depend on your third-party provider’s API and SDK. Refer to their documentation for specific implementation details.

Step 2: Extract Authentication Data

After authentication is complete, extract the required authentication fields from your third-party provider’s response. Ensure you capture all the fields listed in the Required Authentication Fields section above.

The exact field names and structure depend on your third-party provider’s API. Refer to your provider’s documentation to identify where each required field is located in their response.

Step 3: Create the Payment with Authentication Data

Once you have extracted the authentication data from your third-party provider, create the payment through GetNet’s API by including the authentication fields in your payment request.

Call the Create - Authorize endpoint, including:

Standard payment details (amount, currency, customer, card information)
The 3DS authentication data obtained from your third-party provider

Request example with 3DS 2.x data:

curl --request POST \
  --url https://api-sbx.globalgetnet.com/dpm/payments-gwproxy/v2/payments \
  --header 'authorization: Bearer <your-token>' \
  --header 'content-type: application/json' \
  --header 'x-seller-id: 54f88e68-7764-4e87-8830-756b1e2c02f8' \
  --header 'x-transaction-channel-entry: XX' \
  --data '{
  "idempotency_key": "16c7f8ee-51a6-470d-bb76-ef762b62bfb7",
  "request_id": "16ac03dc-73db-453f-9bea-b1391669d5d3",
  "order_id": "ORDER-12345",
  "data": {
    "amount": 118708,
    "currency": "EUR",
    "customer_id": "customer-123",
    "payment": {
      "payment_method": "CREDIT",
      "save_card_data": false,
      "transaction_type": "FULL",
      "number_installments": 1,
      "tdsver": "2.2.0",
      "eci": "05",
      "tdsdsxid": "f7e5f76e-6388-43e6-b8cd-49b251a1f89c",
      "cavv": "aglgsCXwXPJDRA1aTlXIMVQnQakX",
      "card": {
        "expiration_month": "05",
        "expiration_year": "25",
        "cardholder_name": "CARD HOLDER",
        "security_code": "282",
        "number_token": "775c2b646c11d5e0d0d75a722c558a14d24abdb1df3752fcbbe2d61e51fc25f28d028b3139622a78fb03256e7701c35f64cc4920bb2d5f3224c86f42e131a9f9"
      }
    }
  }
}'

Request example with 3DS 1.0 data:

curl --request POST \
  --url https://api-sbx.globalgetnet.com/dpm/payments-gwproxy/v2/payments \
  --header 'authorization: Bearer <your-token>' \
  --header 'content-type: application/json' \
  --header 'x-seller-id: 54f88e68-7764-4e87-8830-756b1e2c02f8' \
  --header 'x-transaction-channel-entry: XX' \
  --data '{
  "idempotency_key": "16c7f8ee-51a6-470d-bb76-ef762b62bfb7",
  "request_id": "16ac03dc-73db-453f-9bea-b1391669d5d3",
  "order_id": "ORDER-12345",
  "data": {
    "amount": 118708,
    "currency": "EUR",
    "customer_id": "customer-123",
    "payment": {
      "payment_method": "CREDIT",
      "save_card_data": false,
      "transaction_type": "FULL",
      "number_installments": 1,
      "tdsver": "1.0.2",
      "xid": "VDdnR0kyU1g4ZXlxMkhWTlp0VnA=",
      "eci": "05",
      "ucaf": "Y2F2dlZhbHVlSW5IZXg=",
      "card": {
        "expiration_month": "05",
        "expiration_year": "25",
        "cardholder_name": "CARD HOLDER",
        "security_code": "282",
        "number_token": "775c2b646c11d5e0d0d75a722c558a14d24abdb1df3752fcbbe2d61e51fc25f28d028b3139622a78fb03256e7701c35f64cc4920bb2d5f3224c86f42e131a9f9"
      }
    }
  }
}'

Response example:

{
  "idempotency_key": "16c7f8ee-51a6-470d-bb76-ef762b62bfb7",
  "seller_id": "54f88e68-7764-4e87-8830-756b1e2c02f8",
  "payment_id": "b4bd779a-98c3-4f99-a028-518de149ed16",
  "order_id": "ORDER-12345",
  "amount": 118708,
  "currency": "EUR",
  "status": "APPROVED",
  "payment_method": "CREDIT",
  "received_at": "2025-08-13T10:34:01.239Z",
  "transaction_id": "MCC50204G3010",
  "original_transaction_id": "MCC50204G3010",
  "authorized_at": "2025-08-13T10:34:01.239Z",
  "reason_code": "00",
  "reason_message": "captured",
  "acquirer": "GETNET",
  "brand": "MASTERCARD",
  "authorization_code": "105020",
  "acquirer_transaction_id": "305020602020306050404010"
}

Important Considerations

When using external 3DS authentication, keep the following in mind:

Data integrity: Ensure data integrity and authenticity of authentication data received from the third-party provider before sending it to GetNet.
Field validation: Transactions may be rejected by the issuer if authentication fields are missing or invalid. Always verify that all required fields are present and correctly formatted.
Provider compatibility: The external provider must support the card brands and countries you operate in. Verify compatibility before implementing.
Error handling: Implement proper error handling for cases where authentication fails or required fields are missing.

Next Steps

Now that you have successfully created a 3DS-authenticated payment using a third-party provider, you can explore more features of the GetNet Global API:

Learn about 3DS Authentication with GetNet if you want to use GetNet’s native 3DS solution.
Review the 3DS Authentication concepts for more information about how 3DS works.
